ModSecurity vs Coraza Docker Test: 20 Request Results

Twenty-request result matrix showing matching ModSecurity and Coraza HTTP 200 and 403 outcomes for clean, SQLi, XSS, query, and JSON cases. — Both fixed stacks matched all 20 expected decisions. This is evidence of behavior on the selected matrix, not a universal accuracy ranking.

Lab status

Product: ModSecurity + NGINX vs Coraza + Caddy
Status: Completed hands-on test
Updated: 2026-07-26

Evidence policy

WAFWiki separates verified smoke-test results from architecture diagrams and methodology notes. A smoke test proves one narrow local path; it does not claim full production readiness.

Environment

Reproducibility notes

Host runtime

Docker Desktop 29.2.0 on macOS, aarch64, 10 CPUs, 7.65 GiB assigned

Shared rule set

OWASP CRS 4.25.0, blocking paranoia level 1, inbound anomaly threshold 5

ModSecurity stack

ModSecurity 3.0.16, ModSecurity-nginx 1.0.4, NGINX image pinned by tag and digest

Coraza stack

Coraza 3.7.0, coraza-caddy 2.5.0, Caddy 2.11.2

Shared upstream

mccutchen/go-httpbin:2.21.0, image digest sha256:809250d14e94397f4729f617931068a9ea048231fc1a11c9e3c7cb8c28bbab8d

Request corpus

Ten cases per engine: six clean, two SQLi-like, and two XSS-like decisions

Commands

How this lab can be reproduced

Reproduce the complete matrix

scripts/run-waf-evidence-lab.sh

The script exits zero only when every observed status matches the expected status column.

Find any status mismatch

awk -F, 'NR == 1 || $6 != $5 { print }' \
  docs/lab-evidence/waf-engine-comparison-2026-07-26-requests.csv

Only the CSV header is printed because the final run contained no mismatch.

Review the pinned environment

cat docs/lab-evidence/waf-engine-comparison-2026-07-26.json

The JSON records host details, component versions, image IDs, results, samples, resource snapshots, and limitations.

Observed result

What the hands-on test showed

Whole matrix

20 / 20 matched

Both stacks produced the expected HTTP status for every declared case.

Clean decisions

12 / 12 returned 200

Each engine allowed the same six representative clean inputs.

SQLi-like decisions

4 / 4 returned 403

Query and JSON SQLi-like strings were blocked by both stacks with CRS 942100 evidence.

XSS-like decisions

4 / 4 returned 403

Query and JSON script-tag strings were blocked by both stacks with CRS 941100 evidence.

Winner from this matrix

Not established

Matching outcomes on 20 requests do not prove equal coverage, false-positive rates, throughput, or operational fit.

shared rules: OWASP CRS 4.25.0
shared upstream: go-httpbin 2.21.0
ModSecurity: 10/10 expected statuses
Coraza: 10/10 expected statuses
clean: 12 HTTP 200 decisions across both stacks
controlled SQLi/XSS: 8 HTTP 403 decisions across both stacks

Evidence context

The matrix controlled the rule set, upstream, requests, and evidence format.

OWASP CRS 4.25.0 was used on both paths. The test intentionally did not hide the remaining architectural difference: ModSecurity ran with NGINX while Coraza ran with Caddy.

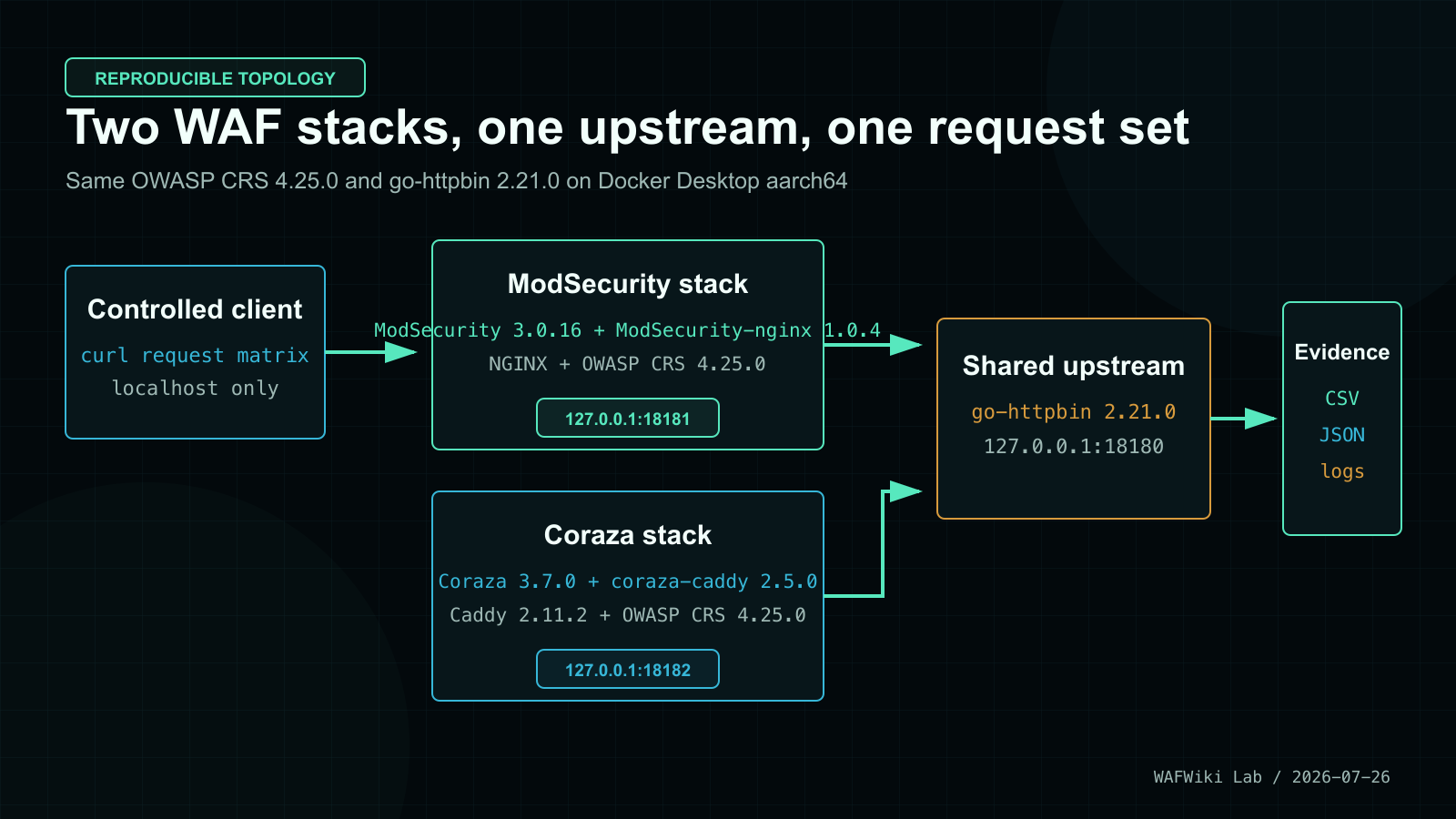

Versioned WAF test topology with one client, two WAF stacks, one shared upstream, and CSV JSON log evidence outputs.

Open evidence

Download the sanitized result files.

The files expose the status matrix and versioned summary without publishing raw container logs or unrelated local data.

Download request matrix CSV

Twenty request outcomes with engine, case, method, path, expected status, observed status, and curl time.

Download evidence summary JSON

Pinned image IDs, component versions, host details, request results, latency samples, resource snapshots, and limitations.

Limitations

What this result does not prove

Twenty decisions are too few to estimate detection coverage or a general false-positive rate.
The reverse proxy, connector, and engine differ together, so the test cannot isolate engine-only effects.
The controlled strings are safe lab inputs and do not represent the full variation of real attack traffic.
No evasion corpus, encoded variants, multipart requests, WebSocket traffic, response inspection, or production application was tested.
The result should be used as a reproducible starting point for a larger workload-specific evaluation, not as a product ranking.
